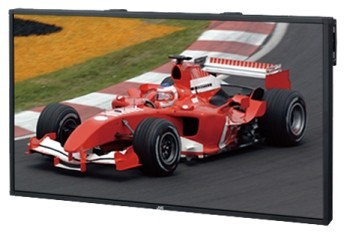

| GM-F470S |
| |
| Description : |
JVC's NEW GM-F Display series is perfect for professional applications where reliability, robustness
|
|
| |
| |
|
| |
|
|
|
| |
| Main Features : |
|
 Special 10 Bit LCD Panel . pt
|
|
|
Hgh realblty for mage stackng .
|
|
|
Human sensor detector . rc
|
|
ECO sensor, for power saving .
|
|
Adjustable gain and cut off for color color calibration .
|
|
RS232/485 and LAN control functions.
|
|
Make and trigger for montior wall´s . t
|
|
Full meall chassis for 247 operaions.
|
|
AC out put for external hardware .
|
|
|
|
| |
|
| Additional features : |
|
Special space for JVC Digital signage “Mini PC” solution with TVTOOLS 8.0 Player Software.
|
|
|
Special PIR sensor to be used in security, digital signage or power saving due to your screening application. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| Technical specs : |
| LCD Panel: |
47 inch Active Matrix TFT . |
|
| Pixel Count: |
1920 x 1080 pixels . |
|
| Contrast Ratio: |
1000 : 1 |
|
| Brightness: |
700 cd/m² |
|
| Viewing Angle: |
178° Horizontal & Vertica |
|
| Input/Output: |
Composite Video 1 line (BNC x2), with Bridge Out |
|
|
RGB input: Analogue RGB: 1 line (D-sub-15-pin) , |
|
|
RGB Output: Analogue RGB (D-sub), Active Output |
|
|
DVI Input: DVDI x1 line |
|
|
Audio1/2: Audio1: RCA, Audio2: stereo mini, both bridged out |
|
| Speakers: |
|
|
| Colour system: |
Composite Video: PAL/NTSC ,RGB: VGA to FHD (1920 x 1080) |
|
|
DVI: VGA to FHD (1920 x 1080) 60Hz ,compatible with HDCP |
|
| Remote control: |
RS-232C IN (D-sub 9), RS-485 IN/Make/Trigger (Rj-45-pin) |
|
|
RS-485 OUT/ IR OUT/LAN remote (Rj-45-pin) |
|
| |
|
| Accessories : |
| UN-PZPWB/JVC |
Wallmount GM-Fxxx, tilt, p/l |
|
| UN-PZPXB/JVC |
Wallmount GM-Fxxx, fix, p/l |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
