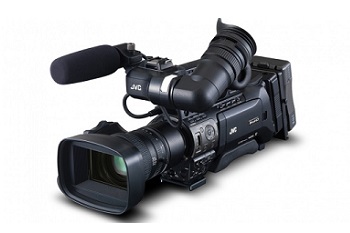

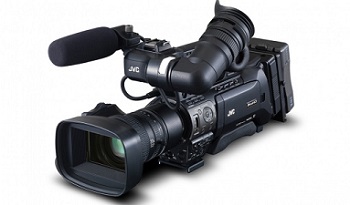

GY-HM890CHE

Description : Be first on-air and first on-line with JVC's new GY-HM890CHE - this model of the camera is without lens. This advanced 3-CMOS camera delivers pristine HD images to solid state memory while streaming via Wi-Fi or a plug-in GSM adapter. It features an interchangeable 20x Fujinon auto-focus lens, 4 channels of audio, dual memory card recording at up to 50 Mbps, an external HD-SDI pool feed input, together with a full complement of fibre and multicore studio options. It's the most feature-rich HD camera JVC has ever offered.




back <<

Main Features :
1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
F12 sensitivity
Compact shoulder design with interchangeable lens options (lens not included on GY-HM890CHE model)
Dual SDHC/SDXC memory card recording (HD+HD, HD+SD, HD+web, etc.)
Multiple file formats for native workflows: XDCAM EX™ (.mp4), Final Cut (.mov), AS-10 (.mxf), AVCHD (.mts), H.264 (.mov)
Virtually lossless H.264 50Mbps recording
4-position ND filter (Clear, 1/4, 1/16, 1/64)
0.45-inch LCOS viewfinder
High-resolution 4.3-inch LCD monitor
Histogram display and expanded focus functions

Additional features :
Focus assist function
Genlock input and TC input/output
HD/SD-SDI external input for recording and streaming (pool feed)
Secure FTP file transfer from shooting location
Tablet or smartphone camera control and monitoring
Variable frame rate recording (over-cranking, under-cranking)
Wired remote control operation
Delivers reliable HD streams without a backpack or microwave link
Single modem (unbonded) plugs directly into camera
Compatible with advanced streaming services, powered by Zixi, for reliable live content delivery

Technical specs :
Image sensor: 1/3” 2.2M pixels progressive scan 3CMOS
Synchronizing system: Internal/external synchronization
Stabilizer: Optical image stabilizer
Lens: Fujinon F1.6-3.0, 20x (interchangeable) f=4.1-82mm (35mm conversion:29
Shutter speed: 1/4 to 1/10000
Filter diameter: 72mm
Gain: -6dB, -3dB, 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, Lolux
ND filter: Clear, 1/4, 1/16, 1/64
LCD display: 4.3” 1.15M pixels
Recording media: 2x SDHC/SDXC memory card Class 4/6/10 (Class4 for AVCHD and H.264 SD/W
Video recording: Video codec: MPEG-2 Long GOP (HD), AVCHD progressive, H.264
File format: MOV (HD/SD/WEB), MP4 (XDCAM EX),MTS (AVCHD progressive), MXF
Audio recording XLR 4-pin x1
Power consumption: Approx 28W (Camera body with provided lens and LCD/VF ON, single rec )
Power: DC 12V (10.5V-17V)

Accessories :
Provided Accessories Microphone x 1
