Zoom Image zoom

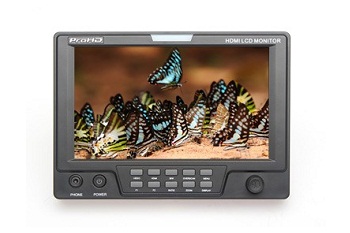

Description : The DT-X71C is an affordable high quality monitor for field and studio applications where HDMI or composite video inputs are available. This 7-inch LCD monitor produces 1024 x 600 resolution, H/V: 160/160 viewing angle and a 900:1 contrast ratio. It has front & rear dual TALLY lights accessed through an RJ-45 rear panel connector, video flip, customer editable video title, and safety mark display. The monitor accepts 1 HDMI and 1 Composite video, 1 stereo audio input. The DT-X71C is powered via a 4-pin XLR 12V DC connector or a snap-on 7.2V battery (optional).
back <<
Main Features :
High resolution 7" LCD Panel .
16:9, 1024x600, 16.77 million colours, 900:1 contrast and H160°/ V160° viewing angles .
1 HDMI, 1 composite input and L/R stereo audio input
Loop through outputs
DSLR scale zoom in
180 ° Image flip
2 user definable front mounted function keys
User editable video title
Front and rear 3-colour TALLY lights
Underscan/overscan switch
Additional features :
0 - 40° C working temperature
0 - 90% working humidity
Weight - 550g
Dimensions: 192x139x47mm
Technical specs :
Accessories :
Brochures and manuals :

DT-X71C brochure
